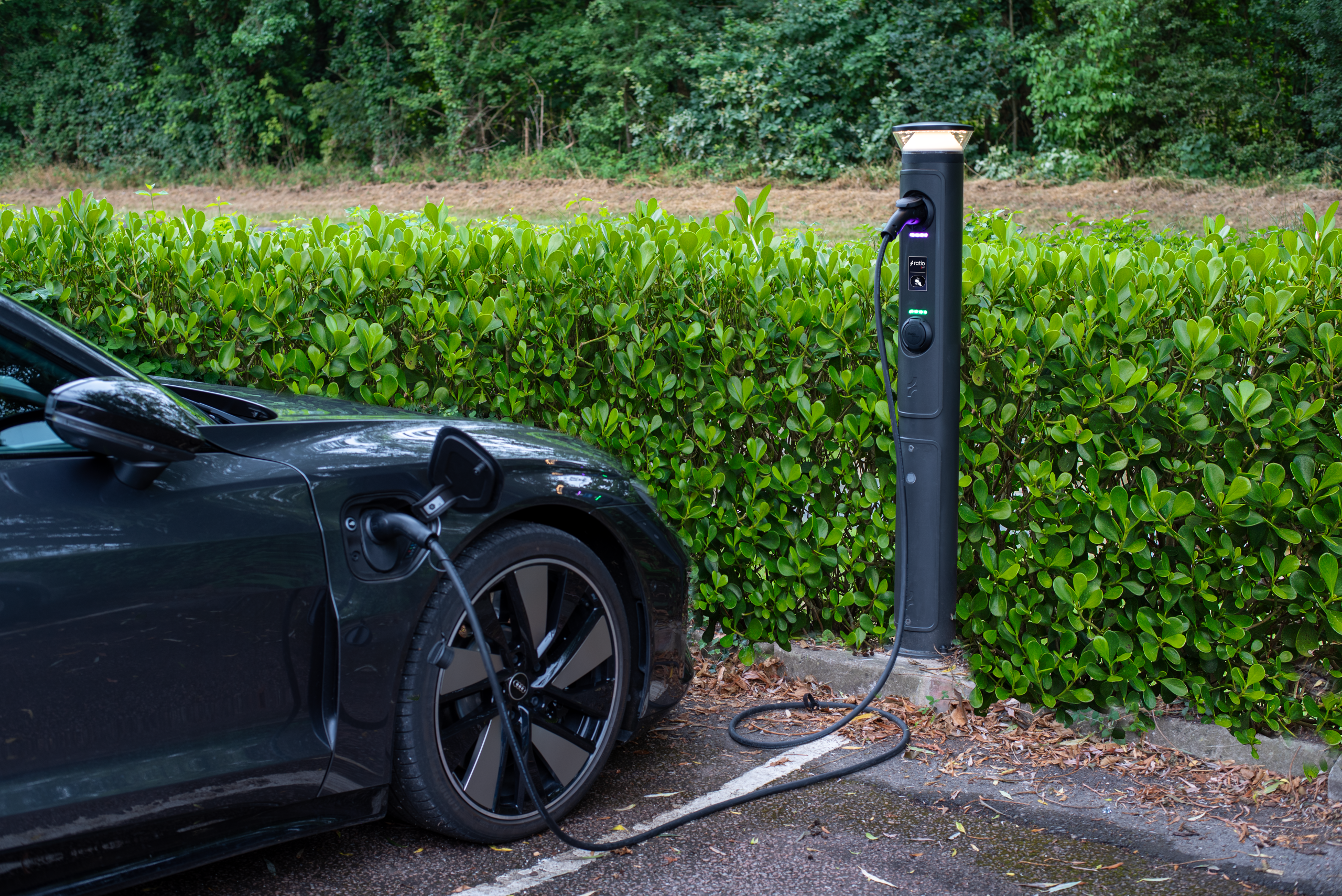

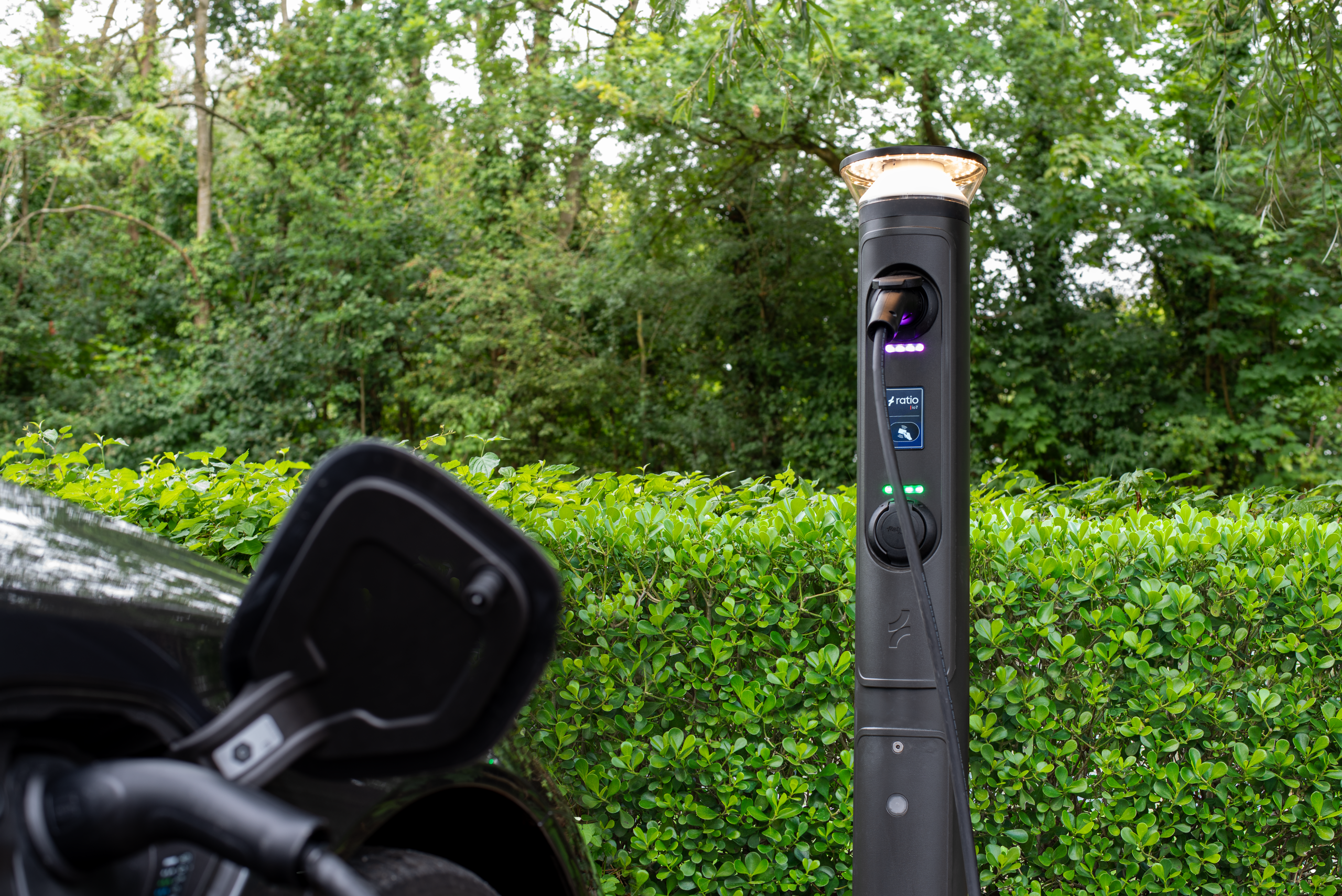

Ratio EV io8 Twin Socket 7.4kW/22kW EV Charger

Description

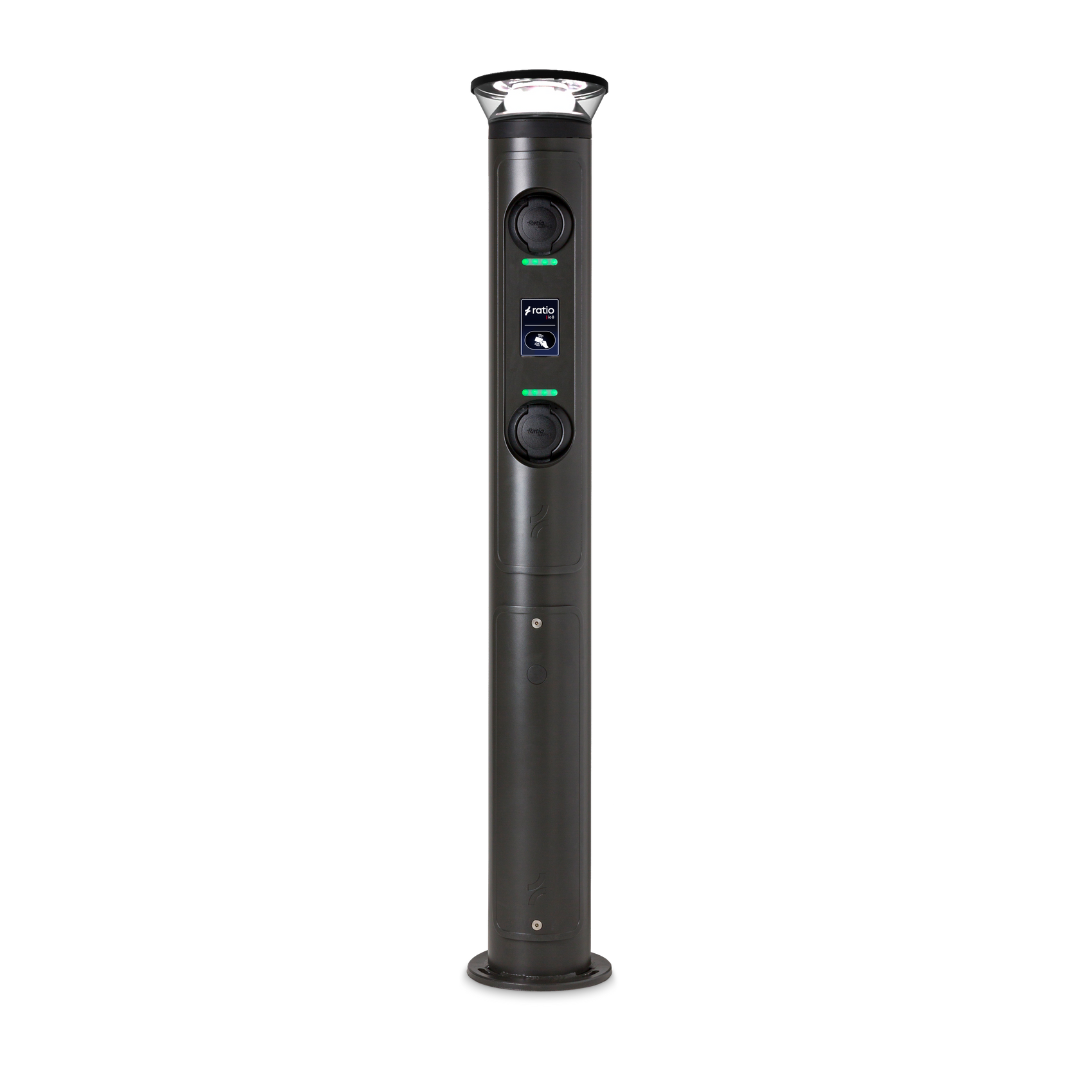

Ratio EV io8 Twin Socket 7.4kW/22kW EV Charger

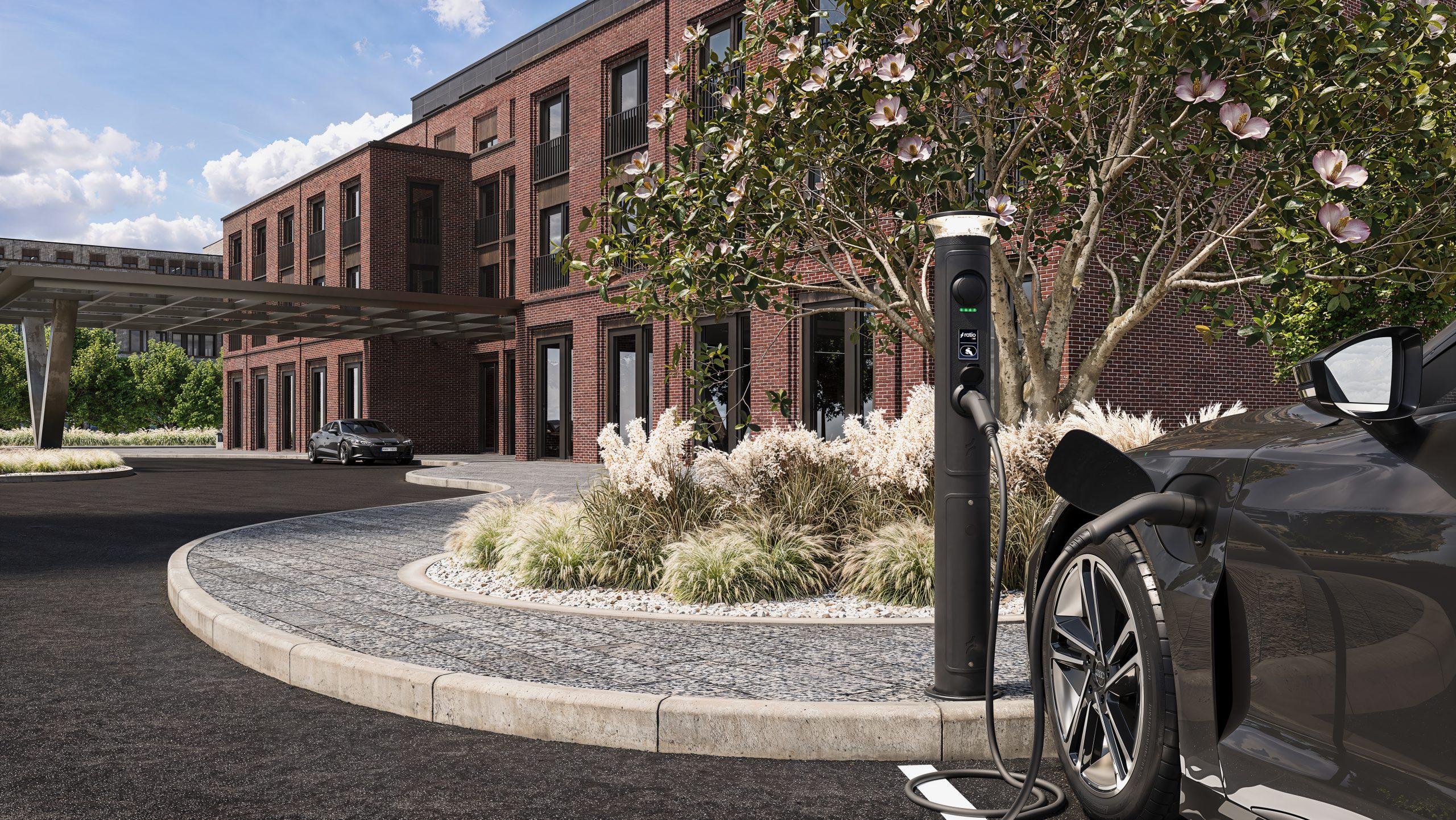

The io8 has been specifically designed to enable EV charging in a multitude of environments and can be configured to suit the user’s power availability and charging needs, internet connectivity, lighting requirements and budget.

The io8 is available with both static and dynamic load management systems. Load management of EV charging equipment is designed to maximise charging speeds whilst protecting the electrical installation and building infrastructure.

22kW io8

io8T22C15PCST – io8 Twin Socket 22kw 3-phase CT Metering Photocell Standard

io8T22M15PCST – io8 Twin Socket 22kw 3-phase MID Metering Photocell Standard

7.4kW io8

io8T74C15PCST – io8 Twin Socket 7.4kw 1-phase CT Metering Photocell Standard

io8T84M15PCST –  io8 Twin Socket 7.4kw 1-phase MID Metering Photocell Standard

• Robust mainly aluminium construction.
• Designed for speed of installation and maintenance.
• Maximised power capacity – intelligent software ensures the optimum amount of charge to each vehicle.
• Flexible payment/usage methods including plug & charge, mobile app or RFID controlled charging.
• OZEV (Office for Zero Emission Vehicles) grant approved.
• Partnership with any OCPP compliant EV software providers to deliver turnkey EV charging solutions.
• OCPP 1.6 compliant (Can integrate with any back-office)
• Over-the-air firmware/software updates.
• High Performing Optics, superior luminaire spacing with high uniformity
• The io8 is available with integral emergency lighting allowing for illumination of walkways in the end of an emergency

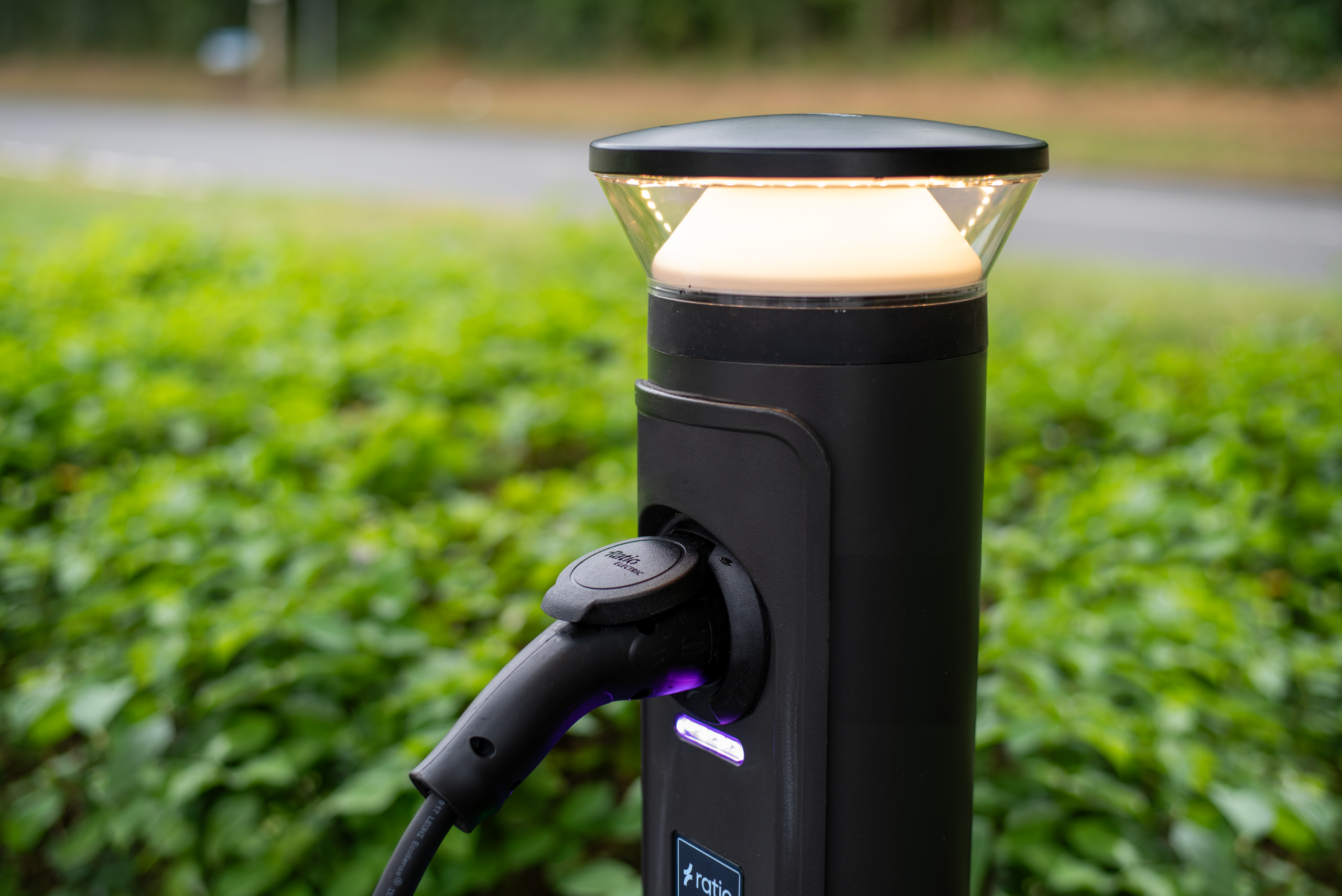

• Illuminating the car, additional lighting aids location of charging sockets and provides illumination
• Lighting controlled versions – photocell for dawn and dusk switching or connected to the sophisticated Thorlux SmartScan system for automated control and monitoring.
• High power charging capability up to twin 22kW.
• Simple RFID antenna to control user access as standard (tags supplied optional extra)
• Can be connected to the internet using the integrated Ethernet port, WiFi or 4G connectivity to provide optional back office control (SIM card supplied optional extra)
• Stylish and contemporary in appearance.
• Large cable termination area, and easy access for servicing and maintenance.

Click Here To Sign Up To Ratio EV’s Installer Portal

Load Management of EV Charging equipment is designed to maximise charging speeds whilst protecting the electrical installation an building infrastructure.

Dynamic Load Management

Monitors the buildings energy supply and usage, calculating the power available and distributing it equally to the EV charger installation. As the building power consumption increases e.g. heavy machinery being switched on or off, the io8 Sense will increase or decrease the power available to the EV charger installation.

Static Load Management

Involves the installation of EV charging equipment on a dedicated power sup0ply that has a known fixed power capacity. The EV chargers are designed to effectively manage this power supply by evenly distributing the load between them as more sockets are utilised. This can be done at Cloud level (using back-office software) or locally to the chargers using the io8 Sense.

* 2-3Week Lead Time.

Data Sheet.
