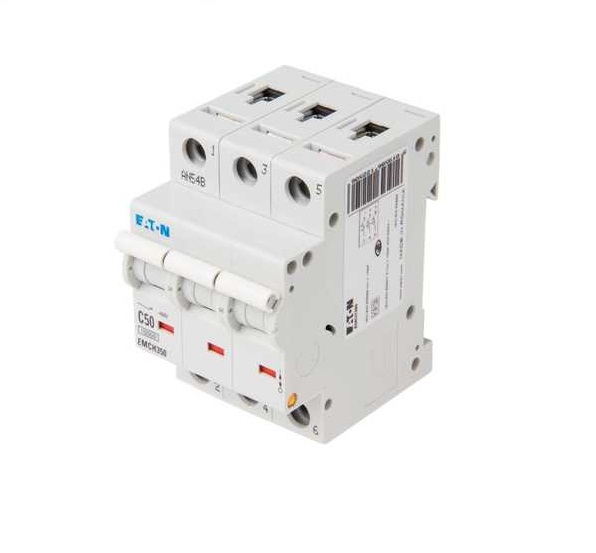

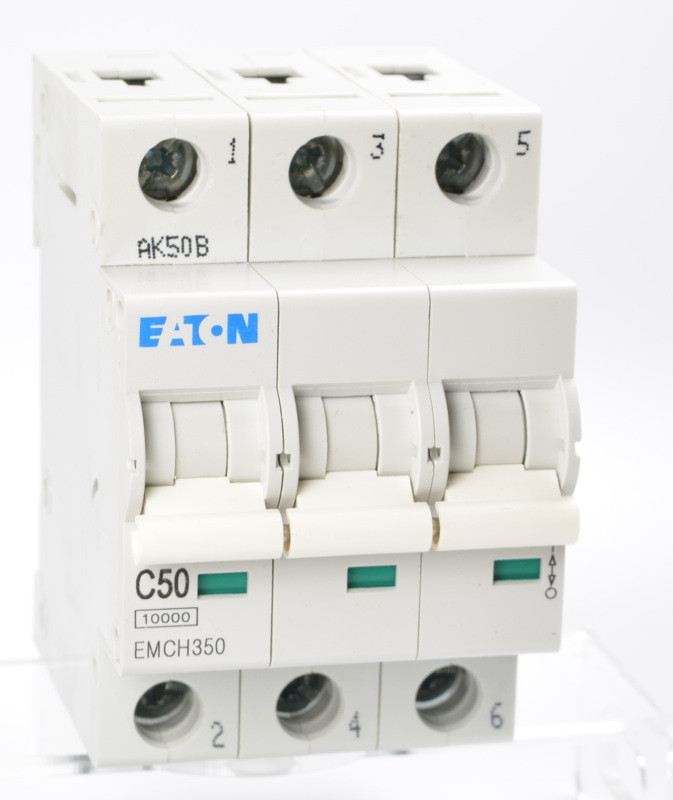

Eaton EMCH350 Memshield 3 50A 10/15kA Triple Pole “C” Type MCB

Eaton EMCH350 Memshield 3 50A 10/15kA Triple Pole “C” Type MCB

Description

Eaton EMCH350

Memshield 3 50A 10/15kA Triple Pole “C” Type MCB

Range Information

The Eaton range of 10/15kA high performance Miniature Circuit Breakers (MCBs) have been designed to meet the latest UK, European and International standards, with ratings from 1A up to 63A. The Eaton Miniature Circuit Breakers are designed and tested in accordance with BS EN 60898 and are available in B, C and D characteristic curve as standard.

Memshield 3 Distribution Boards

Eaton’s Memshield 3 MCB distribution boards have evolved through an intimate knowledge and feedback from electrical contractors, consulting engineers and end users to provide solutions to a wide range of electrical distribution applications in commercial
buildings. Memshield 3 delivers safe, reliable and high performance protection of electrical power distribution systems in accordance with BS EN 61439.

Technical Characteristics
  • Modular design, DIN rail mountable.
  • 1, 2, 3, and 4 pole MCBs for commercial and Industrial applications.
  • Rated Braking Capacity 10kA to IEC 60898 and 15kA to IEC 60947-2.
  • Rated currents from 1–63A in both B, C and D characteristic.
  • Positive contact indication.
  • Box clamp barrier to prevent incorrect cable/busbar insertion.
  • Calibrated at 40° C.
  • Can be used with both pin and comb type busbars.
  • Suitable for use in Eaton Memshield 3 Distribution boards and a wide range of other applications.

Click here for more information

Additional information

Weight 0.2000 kg
Brand

Eaton Memshield 3

Curve

C Type

No. of Poles

Triple Pole
