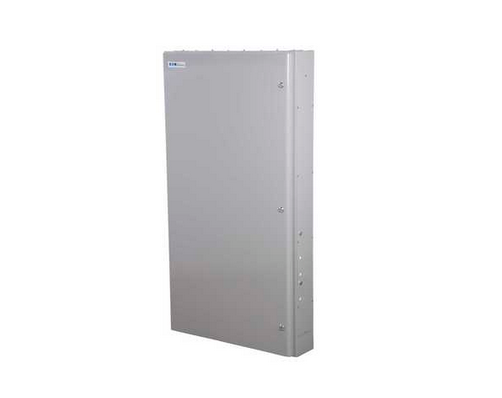

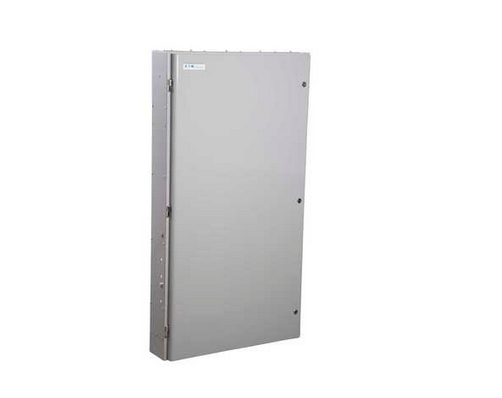

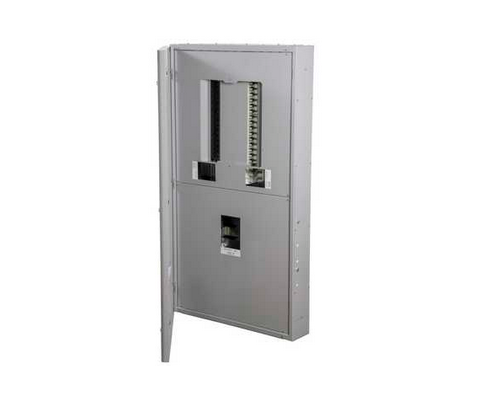

Eaton EPBN21240 Memshield 3 Metal 12 Way MCCB Panelboard – Rated 400A Incoming / 250A Outgoing 415V

Description

Eaton EPBN21240

Memshield 3 Metal 12 Way MCCB Panelboard – Rated 400A Incoming / 250A Outgoing 415V

• Outgoing ways – 12 (2 x 250A + 10 x 160A)
• Incoming rating up to 400A, Outgoing ratings up to 250A
• NZM3 MCCB or N3 switch disconnector  direct lugs connection

Range Information

A complete range of MCCB panelboards and pan assemblies providing all the options you need from a straightforward panelboard to a comprehensive panelboard system. The range now offers a variety of incoming devices and a greater choice of outgoing ways to provide more flexibility and choice to the user.

Specification

• Panelboards to IEC61439-2. Form 3b Type 2
• Busbar system KEMA certified 50kA Icc, Icw 35kA 1s
• IP3X construction
• MCCBs to IEC60947-2. kA ratings shown are Ics=Icu at 400V ac
• Switch disconnectors to IEC60947-3

Features

• 6, 12 or 18 outgoing TP ways
• Outgoing devices; these panelboards utilise two frame sizes of MCCB: NZM2 125A–250A TP, and NZM1 SP 16A–125A or TP 20A–160A
• Tin–plated busbars
• Can be configured for incomer device at top of panelboard
• Removable side gland plates as standard
• Wide range of extension boxes, metering, surge protection, and earth leakage incomer options available
