Eaton EPBN31280 Memshield 3 Metal 12 Way MCCB Panelboard – Rated 800A Incoming / 400A Outgoing 415V

Description

Eaton EPBN31280

Memshield 3 Metal 12 Way MCCB Panelboard – Rated 800A Incoming / 400A Outgoing 415V

• Outgoing ways – 12 (2 x 400A + 4 x 250A + 6 x 160A)
• Incoming rating up to 800A, Outgoing ratings up to 400A
• NZMLW MCCB or NLW CBS

Range Information

A complete range of MCCB panelboards and pan assemblies providing all the options you need from a straightforward panelboard to a comprehensive panelboard system. The range now offers a variety of incoming devices and a greater choice of outgoing ways to provide more flexibility and choice to the user.

Specification

• Panelboards to IEC61439-2. Form 3b Type 2
• Busbar system KEMA certified 50kA Icc, Icw 50kA 1s
• IP3X construction
• Outgoing MCCBs to IEC60947-2. kA ratings shown are Ics=Icu at 400V ac
• Incoming MCCB/circuit breaker switch to IEC60947-2 Icu 50kA, Ics 25kA

Features

• 8, or 12 outgoing TP ways
• Outgoing devices; these panelboards utilise three frame sizes of MCCB: NZM3 250A -400A, NZM2 125A–250A TP, and NZM1 SP 16A–125A or TP 20A–160A
• Tin–plated busbars
• Can be configured for incomer device at top of panelboard
• Removable side gland plates as standard
• Wide range of extension boxes, metering, surge protection, and earth leakage incomer options available
• Door lock included

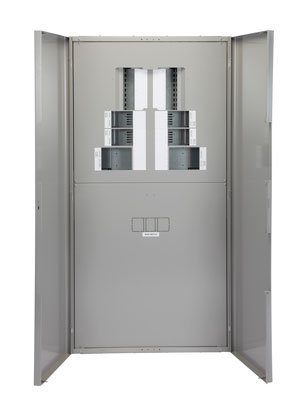

NB. Images representative of the range.
