Eaton MEM 15AXTN2 Exel 2 Grey Three Phase TPN Switch Disconnector 20A 415V

Eaton MEM 15AXTN2  Exel 2 Grey Three Phase TPN Switch Disconnector 20A 415V

Description

Eaton MEM 15AXTN2

Exel 2 Grey Three Phase TPN Switch Disconnector 20A 415V

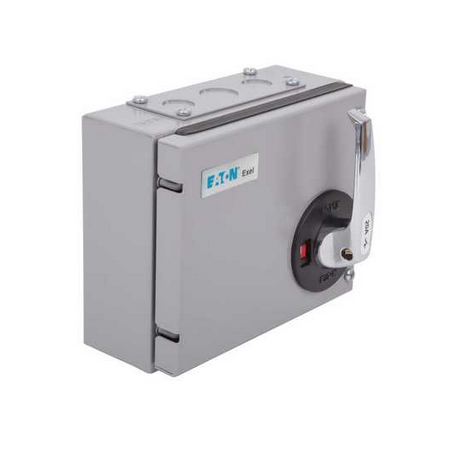

The Eaton MEM 15AXTN2 Three Phase TPN 20A 415V Switch Disconnector with surface-mounting enclosure fabricated from rust-protected sheet steel with a light grey paint finish.

Supplied with removable top and bottom endplates incorporating knockouts (blank endplates available) and gasketed doors giving IP41 protection. Chromium-plated front operating handles with ON (I) OFF (O) indication, and internal fixing enabling units to be mounted closely side by side.

Exel2 switch disconnectors and fuse-switch-disconnectors are type tested to BSEN60947-3 and meet the constructional requirements for isolation as speciifed in BSEN60947-3.

Switches are of the quick make and break type, suitable for use on AC or DC. Units have removable moving contact assemblies to facilitate wiring.

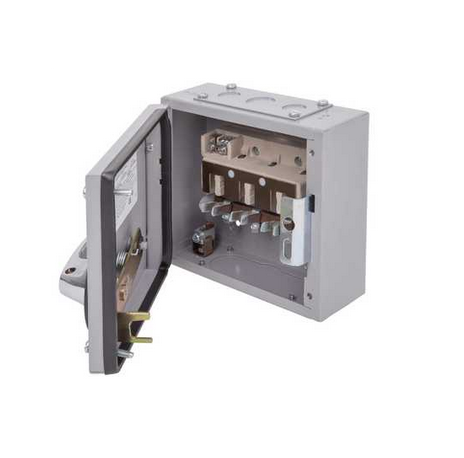

Interiors comprise porcelain bases fitted with non-ferrous conducting components.

Range Information

Eaton’s MEM products have earned a worldwide reputation for reliable high quality switch and fusegear – and above all market leading status.

Constantly updated and refined to comply with the very latestinternational standards, the market leading switchgear range, specialist heavy duty items and dedicated distribution and control equipment fulfils the diverse requirements of the contractor, specifier, OEM and distributor alike.

Motor Rating

The motor ratings assigned to TPN switch-disconnector units are utilization category AC23A (frequent operation) to BSEN60947-3, which calls for make and break testing at 10 and 8 times rated current respectively for units having a motor rating up to and including 100 Amps.

Ratings for switch-disconnector-fuses are dependent on suitable HRC fuses being fitted.

Click here for more information

Additional information

Weight 20.0000 kg
