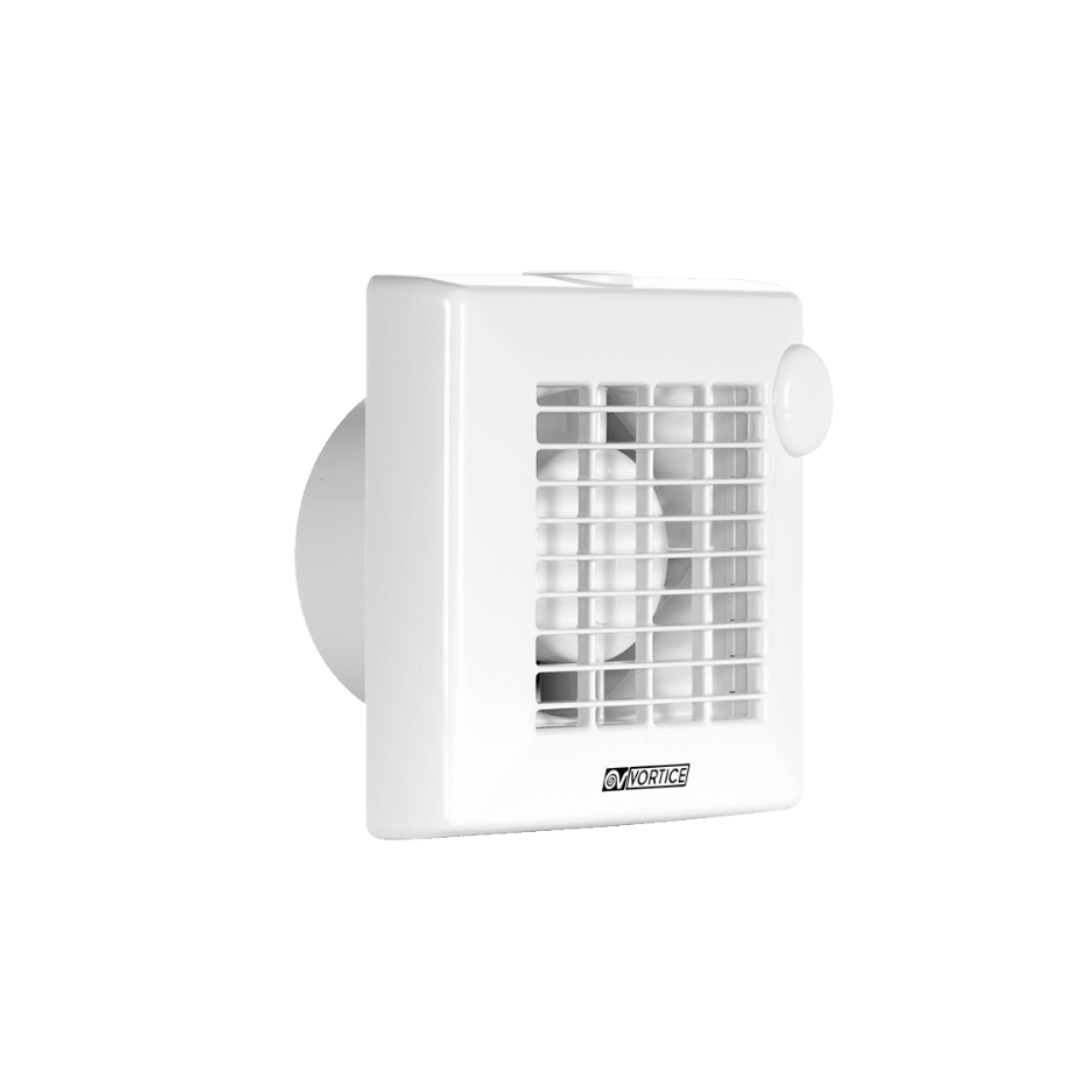

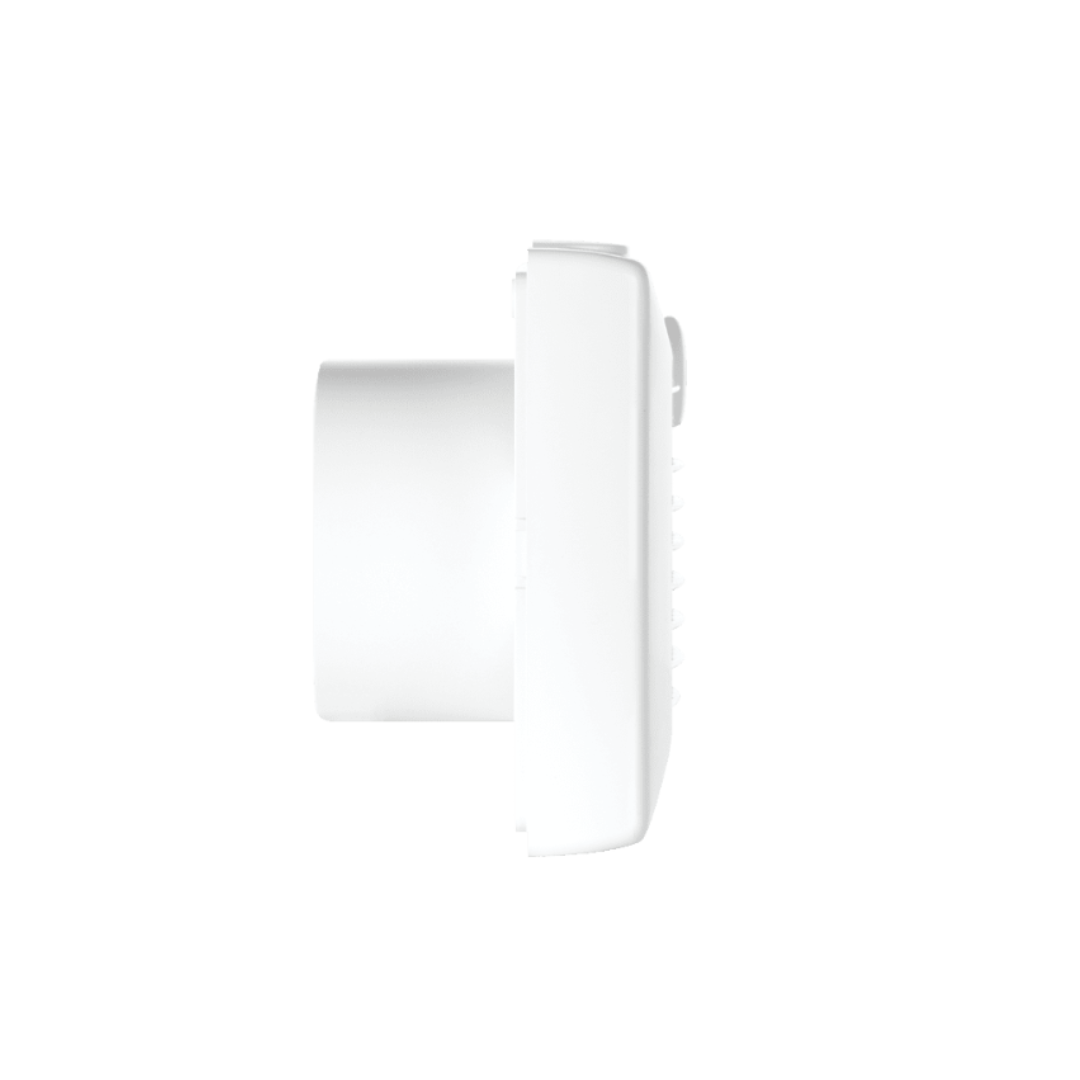

Vortice Punto M 100/4″ IPX4 Extractor Fan (11201)

The Vortice Punto M 100/4″ (11201) is a compact axial extractor fan designed for effective ventilation in bathrooms, toilets, shower rooms and utility areas. Suitable for wall or window installation, this 100mm fan delivers airflow rates of up to 90 m³/h while maintaining low power consumption and quiet operation. Its simple on/off operation makes it an ideal solution for straightforward intermittent extraction applications in both domestic and light commercial environments.

Manufactured from UV-resistant ABS plastic, the Punto M is built for long-lasting performance and features IPX4 splash-proof protection for installation in wet areas. The thermally protected motor and aerodynamic wing-profile impeller help maximise airflow efficiency while reducing noise levels. Compact, reliable and easy to install, the Punto M 100/4″ provides a practical and cost-effective ventilation solution where dependable extraction is required.

Key Features

• 100mm (4″) axial extractor fan
• Suitable for wall or window installation
• IPX4 rated for use in wet areas
• Maximum airflow: 90 m³/h (25 l/s)
• Low energy consumption – 18W
• Low noise operation – 37.5 dB(A) at 3m
• UV-resistant ABS construction
• Thermal overload motor protection
• Class II double insulated
• White finish
• Suitable for bathrooms, toilets, shower rooms and utility areas

Datasheet.
