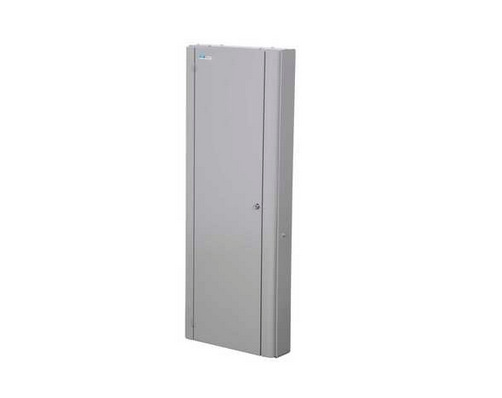

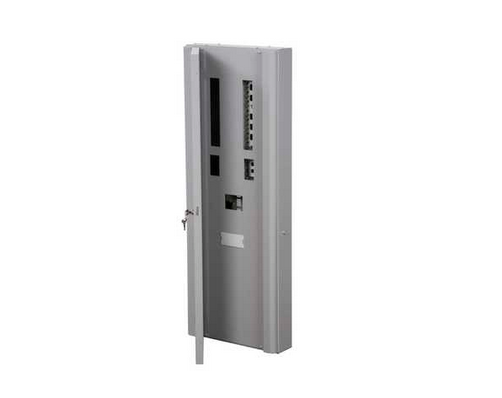

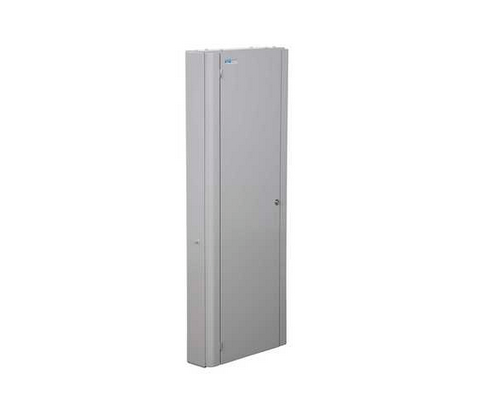

Eaton EBM122H Memshield 3 Highload 12 Way Type B TPN Distribution Board w/o Incomer 250A

Eaton EBM122H Memshield 3 12 Way Type B High Load Three Phase TPN Distribution Board without Incomer 250A

Description

Eaton EBM122H

Memshield 3 12 Way Type B High Load Three Phase TPN Distribution Board without Incomer 250A

Range Information
  • 250A TPN, Type B High Load Distribution Board
  • 2 x 27mm TP Ways 125A Max & 10 x 18mm TP Ways 63A Max
  • These boards include 2 TPN outgoing ways for 27mm MCB (up to 125A)
  • Adequate integral cabling space means that no extension box is required.
  • IP4X
  • Fitted with door lock as standard.

Dimensions W : 440m x H : 1180mm x D : 130mm.

Features
  • Welded case end design board with removable gland plates provides super stiff construction, even with gland plates removed. Construction virtually eliminates distortion during installation, ensuring final assembly fit and alignment.
  • Unique cable trunking interface kit simplifies mounting of cable trunking and protects cables.
  • Improved Neutral cable clamp design for simple & secure cable connection.
  • Unique full form blanking modules for unused MCB ways, provides secure shrouding of unused busbar stabs for increased safety. Blanking modules have interlinking form for improved positional security.
  • Removable busbar assembly to assist installation.
  • Additional Functional Earthing options and Clean Earth options available.
  • Auto-formed, curved construction of main cover adds to board rigidity, with improved appearance.
  • Removable door aids installation and easy hang hinge design makes re-attachment of door simple.
  • New 125A Switch Disconnector Incomer for general commercial building applications.
  • 250A options on 18 and 24 way boards.
  • Compact 250A options on 18 and 24 way boards, where used with cable trunking.

Click here for more information

Additional information

Weight 35.0000 kg
